HVAC Projects

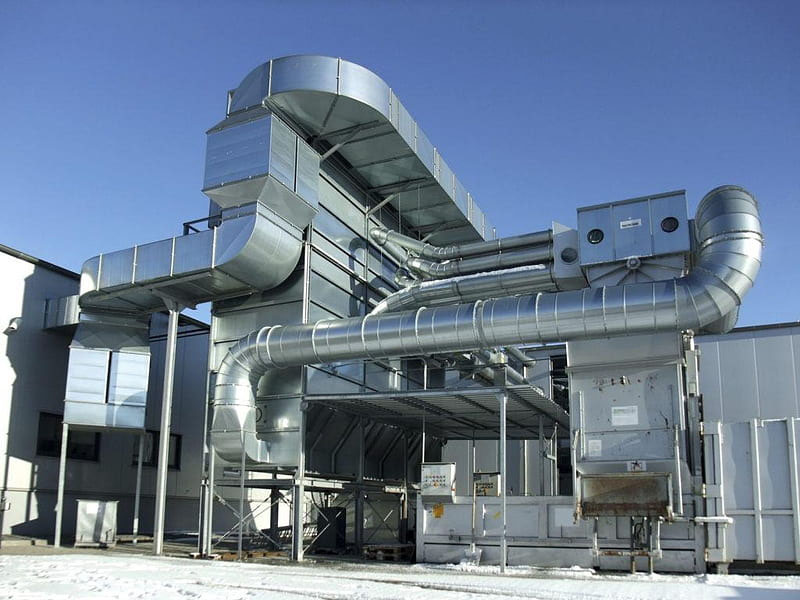

Our HVAC (Heating, Ventilation, and Air Conditioning) projects are designed to deliver efficient, sustainable, and high-performance environmental control systems for various applications, including commercial, industrial, and institutional facilities.

Below is a brief description of key components and processes involved in our HVAC Projects.

DESIGNING OF HVAC SYSTEM

"If You Think Good Design Is Expensive, You Should Look At The Cost Of Bad Design" - Dr.Ralf Speth

Our Design Process has 3 steps

Conceptual Design ( where we understand your understanding and bring shape to the project)

Basic Engineering ( Where we ensure the Viablity of the project and estimate the total project specifications and cost )

Detailed Engineering ( Where Actual factory shop drawings are released and the project shall now be monitored on a minute basis from technology , quality and cost perspectives)

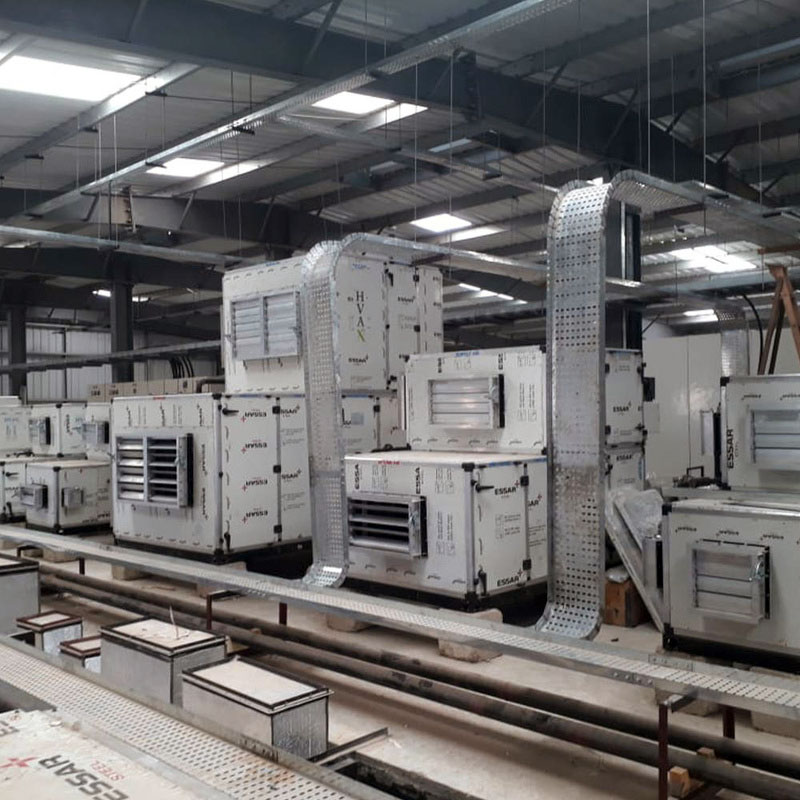

AIR HANDLING UNIT

43 mm thick PUF / Rockwool insulated GI casings with aluminium thermal break profile containing G4, F9 and sometimes H13 filters for filtering the air, direct driven / belt driven blowers for air circulation & cooling and heating coils to cool and dehumidify the air, all working to produce air quality of the highest order. These AHUs are designed to deliver CFM ranging from 500-50,000CFM.

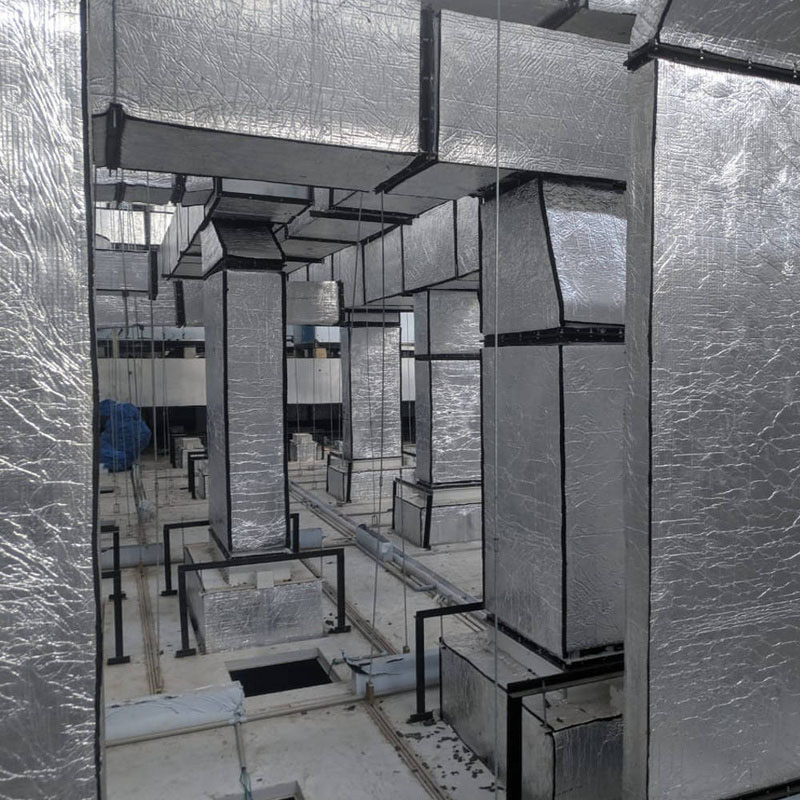

DUCT

We provide ducts which are prefabricated, this reduces the installation time at site and the leakages are bear minimum. They are further insulated with polyethylene/nitrile rubber to supress hear loss. In addition we provide the pre-insulated ducts.

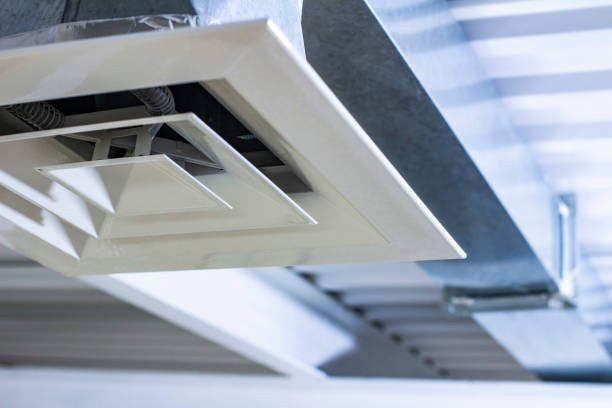

AIR DIFFUSING PORTS

Grills, Diffusers, jet nozzles with dampers to diffuse the required amount of conditioned air into the room and thereby produce a controlled environment.

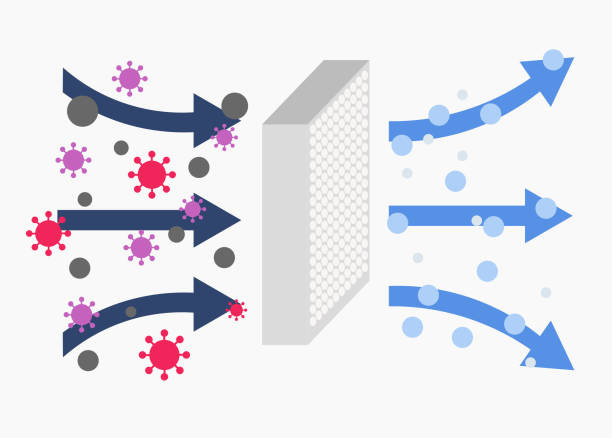

HEPA FILTERS

Final stage filtration, usually mounted in the room and sometimes within the AHU, capable of filtering air upto 99.997% and of particles whose diameter is equal to 0.3 microns thereby making it a mandatory product for classified areas.
